Swept Path Analysis

We are able to provide detailed swept path analysis to demonstrate the suitability of the highway design to support your application for planning approval.

We assess the space needed for a variety of abnormal load carrying vehicles to negotiate the national and local road network.

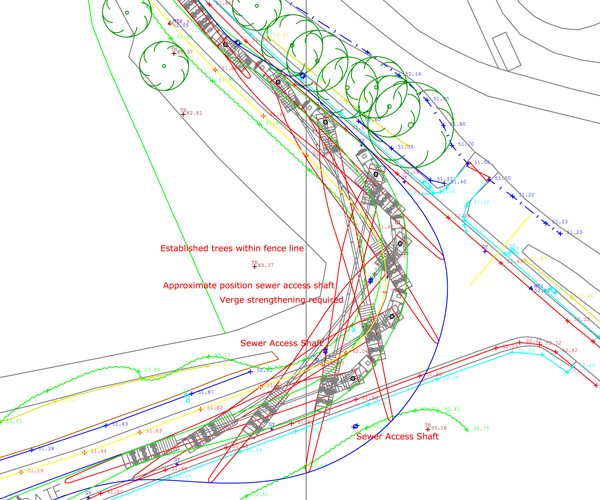

We can quickly and cost effectively produce the necessary swept path drawing often required by Local Authorities, in order to prevent any hold up with your planning application.

This is undertaken in a variety of different ways, ranging from our qualified survey team carrying out a site visit and instrument survey, using MasterMap data and our in house engineers modelling the vehicle swept path or using the AutoTRACK program which is used as part of the AutoCAD suite of programs.

Swept path analysis is often undertaken as part of a route negotiability study or site access study but can also be commissioned on an individual site specific basis.
